jordium-gantt-vue3

中文 | English

A modern Vue 3 Gantt chart component library providing complete solutions for project management and task scheduling

📱 Live Demo | 📦 GitHub | 📚 npm

✨ Introduction

jordium-gantt-vue3 is a modern Gantt chart component built with Vue 3 and TypeScript, designed specifically for project management and task scheduling scenarios. It provides rich interactive features, flexible configuration options, and elegant visual effects.

Core Features

📊 Feature Complete - Task management, milestones, dependencies, progress tracking
🎨 Theme System - Built-in light/dark themes with customizable styles
🖱️ Smooth Interaction - Drag & resize, zoom, double-click edit, context menu
🌍 Internationalization - Built-in Chinese/English with extensible language support
⚡ High Performance - Virtual scrolling, lazy loading for handling massive data
💎 Type Safe - Full TypeScript support

Preview

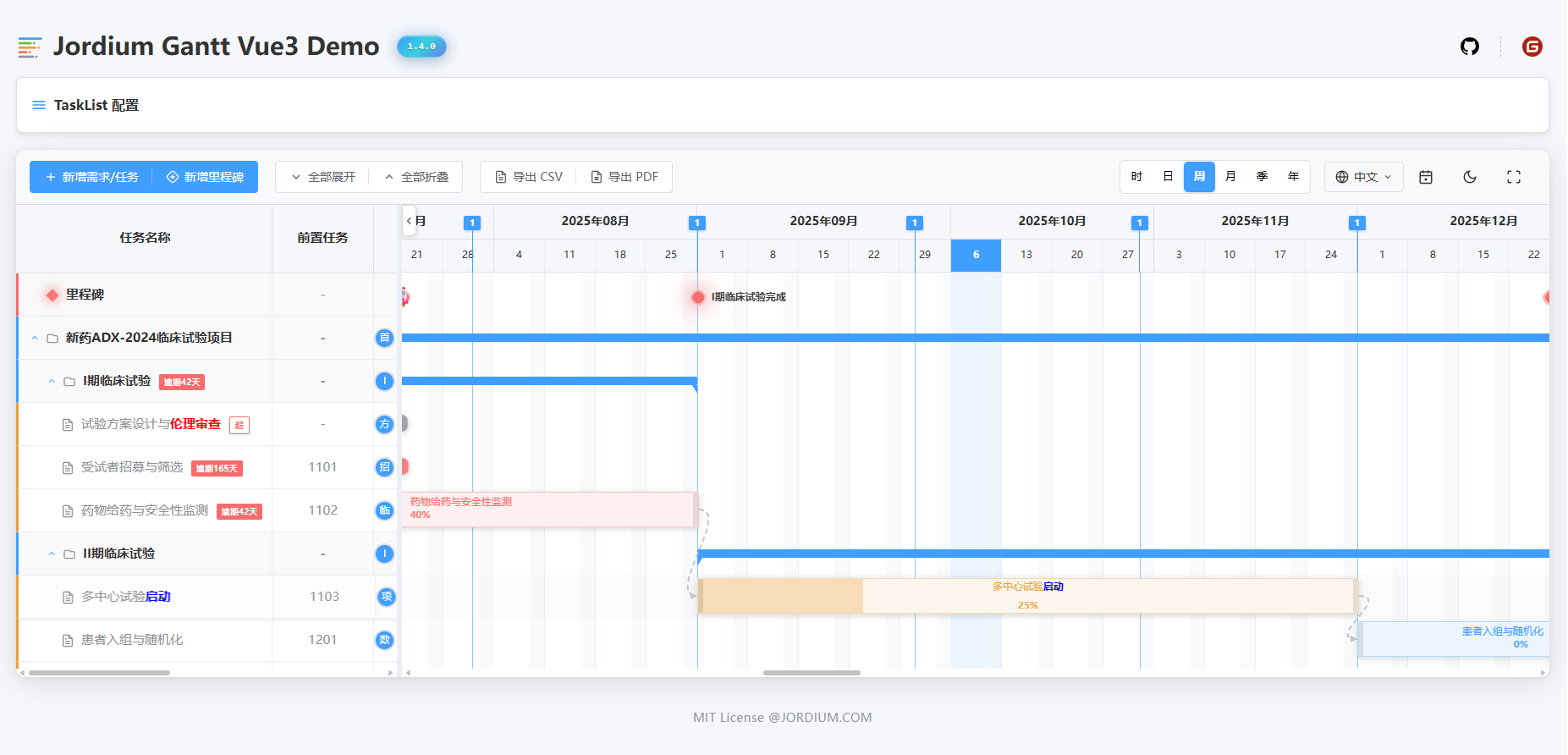

Light Theme

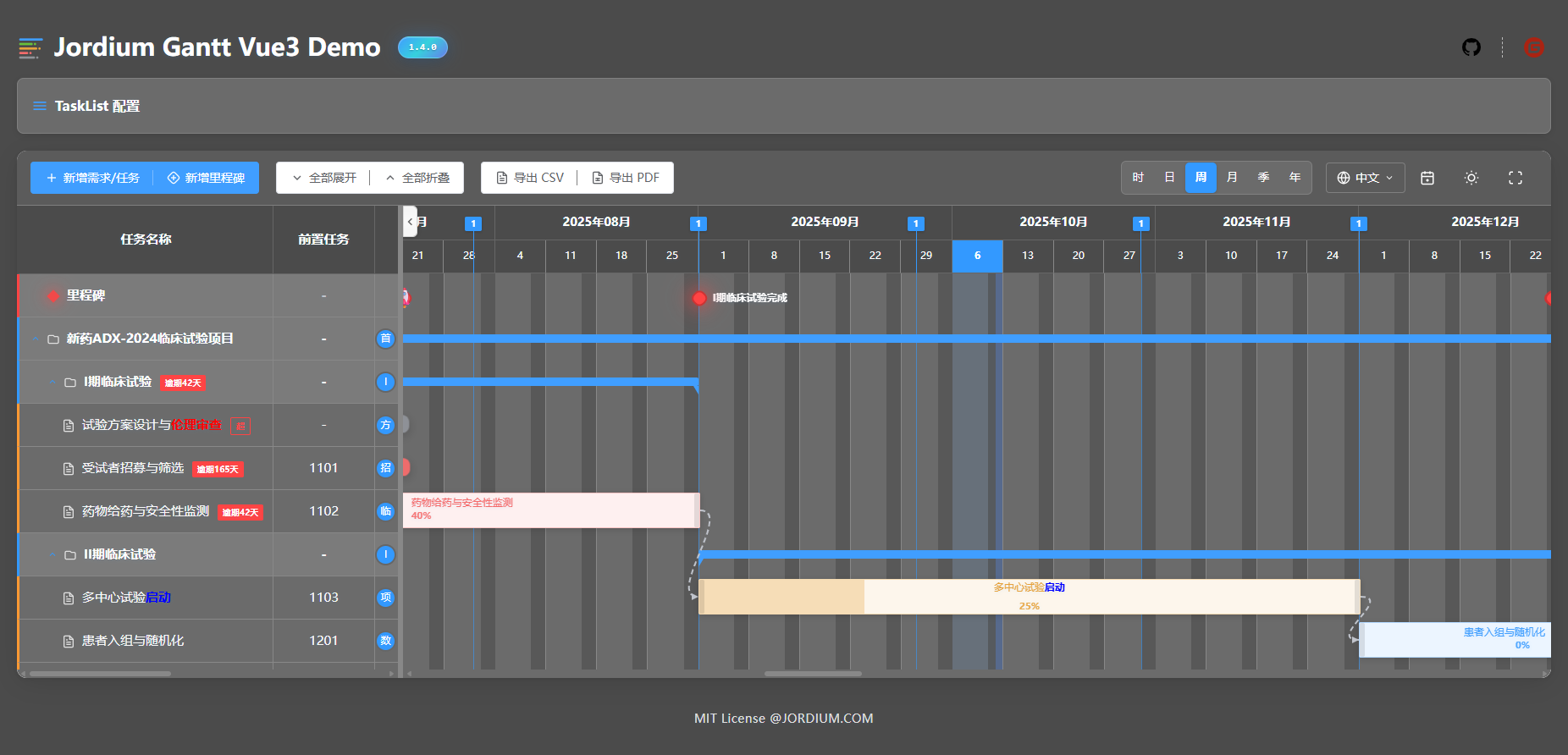

Dark Theme

📦 Installation

Install using your preferred package manager:

# npm
npm install jordium-gantt-vue3

# yarn
yarn add jordium-gantt-vue3

# pnpm
pnpm add jordium-gantt-vue3

🚀 Quick Start

Import Component

Import the GanttChart component and styles:

<script setup lang="ts">
import { GanttChart } from 'jordium-gantt-vue3'
import 'jordium-gantt-vue3/dist/assets/jordium-gantt-vue3.css'
</script>

Tip

: The style file only needs to be imported once in your project. It's recommended to import it in main.ts or the root component.

First Example

Create your first Gantt chart:

<template>
  <div style="height: 600px;">
    <GanttChart
      :tasks="tasks"
      :milestones="milestones"
    />
  </div>
</template>

<script setup lang="ts">
import { ref } from 'vue'
import { GanttChart } from 'jordium-gantt-vue3'
import 'jordium-gantt-vue3/dist/assets/jordium-gantt-vue3.css'

const tasks = ref([
  {
    id: 1,
    name: 'Project Kickoff',
    startDate: '2025-01-01',
    endDate: '2025-01-10',
    progress: 100
  },
  {
    id: 2,
    name: 'Requirements Analysis',
    startDate: '2025-01-11',
    endDate: '2025-01-20',
    progress: 80,
    predecessor: [1]
  },
  {
    id: 3,
    name: 'System Design',
    startDate: '2025-01-21',
    endDate: '2025-02-05',
    progress: 50,
    predecessor: [2]
  }
])

const milestones = ref([
  {
    id: 101,
    name: 'Project Approval',
    date: '2025-01-01',
    type: 'milestone'
  }
])
</script>

🎯 Try Live Demo on Github → Recommended: DOVE VPN for fast and stable access. (Note: Please use VPN services legally)

🌞 NPM Package Usage Example

Please refer to the npm-demo folder in the project. It is a standalone project that can be opened and run independently using your IDE. Before running, make sure to install the Element Plus library and the jordium-gantt-vue3 plugin package.

# npm
npm install element-plus
npm install jordium-gantt-vue3
npm run dev

📖 Component Guide

GanttChart Component

GanttChart is the core entry point of the library, providing complete Gantt chart functionality.

Basic Props

Prop	Type	Default	Description
`tasks`	`Task[]`	`[]`	Array of task data
`milestones`	`Task[]`	`[]`	Array of milestone data (Note: Type is Task[], must set type='milestone')
`showToolbar`	`boolean`	`true`	Whether to show the toolbar
`useDefaultDrawer`	`boolean`	`true`	Whether to use the built-in task edit drawer (TaskDrawer)
`useDefaultMilestoneDialog`	`boolean`	`true`	Whether to use the built-in milestone edit dialog (MilestoneDialog)
`autoSortByStartDate`	`boolean`	`false`	Whether to automatically sort tasks by start date
`allowDragAndResize`	`boolean`	`true`	Whether to allow dragging and resizing tasks/milestones

Configuration Object Props

For complete configuration object documentation, see ⚙️ Configuration & Customization section.

Prop	Type	Default	Description
`toolbarConfig`	`ToolbarConfig`	`{}`	Toolbar configuration
`taskListConfig`	`TaskListConfig`	`undefined`	Task list configuration
`taskBarConfig`	`TaskBarConfig`	`undefined`	Task bar style configuration
`localeMessages`	`Partial<Messages['zh-CN']>`	`undefined`	Custom localization messages
`workingHours`	`WorkingHours`	`{ morning: { start: 8, end: 11 }, afternoon: { start: 13, end: 17 } }`	Working hours configuration

Callback Props

Prop	Type	Description
`onTodayLocate`	`() => void`	Toolbar "Today" button click callback
`onExportCsv`	`() => boolean \| void`	Toolbar "Export CSV" button click callback, return `false` to prevent default export
`onExportPdf`	`() => void`	Toolbar "Export PDF" button click callback
`onLanguageChange`	`(lang: 'zh-CN' \| 'en-US') => void`	Language switch callback
`onThemeChange`	`(isDark: boolean) => void`	Theme switch callback
`onFullscreenChange`	`(isFullscreen: boolean) => void`	Fullscreen toggle callback
`onExpandAll`	`() => void`	Toolbar "Expand All" button click callback
`onCollapseAll`	`() => void`	Toolbar "Collapse All" button click callback

Component Events

For complete event documentation, see:

Task-related events: See Task Management section below
Milestone-related events: See Milestone Management section below

Event List Overview:

Event Name	Parameters	Description
`add-task`	-	Clicked toolbar "Add Task" button
`task-click`	`(task: Task, event: MouseEvent)`	Clicked task
`task-double-click`	`(task: Task)`	Double-clicked task
`task-added`	`{ task: Task }`	Triggered after task added
`task-updated`	`{ task: Task }`	Triggered after task updated
`task-deleted`	`{ task: Task }`	Triggered after task deleted
`taskbar-drag-end`	`(task: Task)`	Task drag ended
`taskbar-resize-end`	`(task: Task)`	Task resize ended
`predecessor-added`	`{ targetTask, newTask }`	Added predecessor task
`successor-added`	`{ targetTask, newTask }`	Added successor task
`timer-started`	`(task: Task)`	Task timer started
`timer-stopped`	`(task: Task)`	Task timer stopped
`add-milestone`	-	Clicked toolbar "Add Milestone" button
`milestone-saved`	`(milestone: Task)`	Milestone saved
`milestone-deleted`	`{ milestoneId: number }`	Milestone deleted
`milestone-icon-changed`	`{ milestoneId, icon }`	Milestone icon changed
`milestone-drag-end`	`(milestone: Task)`	Milestone drag ended

Example 1: Simplest Gantt Chart

<template>
  <div style="height: 600px;">
    <GanttChart :tasks="tasks" />
  </div>
</template>

<script setup lang="ts">
import { ref } from 'vue'
import { GanttChart } from 'jordium-gantt-vue3'
import 'jordium-gantt-vue3/dist/assets/jordium-gantt-vue3.css'

const tasks = ref([
  {
    id: 1,
    name: 'Task 1',
    startDate: '2025-01-01',
    endDate: '2025-01-10',
    progress: 100
  }
])
</script>

Example 2: Gantt Chart with Milestones

<template>
  <div style="height: 600px;">
    <GanttChart
      :tasks="tasks"
      :milestones="milestones"
    />
  </div>
</template>

<script setup lang="ts">
import { ref } from 'vue'
import { GanttChart } from 'jordium-gantt-vue3'
import 'jordium-gantt-vue3/dist/assets/jordium-gantt-vue3.css'

const tasks = ref([
  {
    id: 1,
    name: 'Project Kickoff',
    startDate: '2025-01-01',
    endDate: '2025-01-10',
    progress: 100
  }
])

const milestones = ref([
  {
    id: 101,
    name: 'Project Approval',
    startDate: '2025-01-01',
    type: 'milestone',
    icon: 'diamond'
  }
])
</script>

<template>
  <div>
    <!-- Custom toolbar -->
    <div class="custom-toolbar">
      <button @click="addTask">Add Task</button>
      <button @click="addMilestone">Add Milestone</button>
    </div>

    <!-- Gantt chart component with hidden built-in toolbar -->
    <div style="height: 600px;">
      <GanttChart
        :tasks="tasks"
        :milestones="milestones"
        :show-toolbar="false"
        @task-added="handleTaskAdded"
        @milestone-saved="handleMilestoneSaved"
      />
    </div>
  </div>
</template>

<script setup lang="ts">
import { ref } from 'vue'
import { GanttChart } from 'jordium-gantt-vue3'
import 'jordium-gantt-vue3/dist/assets/jordium-gantt-vue3.css'

const tasks = ref([])
const milestones = ref([])

const addTask = () => {
  const newTask = {
    id: Date.now(),
    name: 'New Task',
    startDate: new Date().toISOString().split('T')[0],
    endDate: new Date().toISOString().split('T')[0],
    progress: 0
  }
  tasks.value.push(newTask)
}

const addMilestone = () => {
  const newMilestone = {
    id: Date.now(),
    name: 'New Milestone',
    startDate: new Date().toISOString().split('T')[0],
    type: 'milestone'
  }
  milestones.value.push(newMilestone)
}

const handleTaskAdded = (e) => {
  console.log('Task added:', e.task)
}

const handleMilestoneSaved = (milestone) => {
  console.log('Milestone saved:', milestone)
}
</script>

Task Management

Tasks are the core elements of the Gantt chart. The component provides complete CRUD operation support for tasks, including adding, editing, deleting tasks, and rich interactive events.

Task Data Structure

Field	Type	Required	Default	Description
`id`	`number`	✅	-	Unique task identifier
`name`	`string`	✅	-	Task name
`startDate`	`string`	-	-	Start date, format: 'YYYY-MM-DD' or 'YYYY-MM-DD HH:mm'
`endDate`	`string`	-	-	End date, format: 'YYYY-MM-DD' or 'YYYY-MM-DD HH:mm'
`progress`	`number`	-	`0`	Task progress, range 0-100
`predecessor`	`number[]`	-	-	Array of predecessor task IDs, standard format: `[1, 2, 3]` Compatible formats: Also supports string `'1,2,3'` or string array `['1', '2', '3']`, component will auto-parse
`assignee`	`string`	-	-	Task assignee
`avatar`	`string`	-	-	Avatar URL of task assignee
`estimatedHours`	`number`	-	-	Estimated hours
`actualHours`	`number`	-	-	Actual hours
`parentId`	`number`	-	-	Parent task ID, used for task grouping
`children`	`Task[]`	-	-	Array of child tasks
`collapsed`	`boolean`	-	`false`	Whether child tasks are collapsed
`isParent`	`boolean`	-	-	Whether this is a parent task
`type`	`string`	-	-	Task type, 'milestone' for milestone, 'milestone-group' for milestone group
`description`	`string`	-	-	Task description
`icon`	`string`	-	`'diamond'`	Task icon (for milestones), options: 'diamond', 'flag', 'star', 'rocket', etc.
`level`	`number`	-	`0`	Task level (auto-calculated)
`isTimerRunning`	`boolean`	-	`false`	Whether timer is running
`timerStartTime`	`number`	-	-	Timer start time (timestamp)
`timerEndTime`	`number`	-	-	Timer end time (timestamp)
`timerStartDesc`	`string`	-	-	Description filled when timer starts
`timerElapsedTime`	`number`	-	`0`	Elapsed time (milliseconds)
`isEditable`	`boolean`	-	`true`	Whether individual task is editable (draggable, resizable), overrides global `allowDragAndResize`
`[key: string]`	`unknown`	-	-	Supports custom property extensions, can add any additional fields

Custom Property Extensions: The Task interface supports adding arbitrary custom fields, such as: priority, tags, status, department, and other business-related fields.

Predecessor Field Notes:

Standard format (recommended): predecessor: [1, 2, 3] - number array Compatible format 1: predecessor: '1,2,3' - comma-separated string

Compatible format 2: predecessor: ['1', '2', '3'] - string array

Component will automatically parse all formats into number array

No predecessors: use empty array [], empty string '', or don't set this field

Prop	Type	Default	Description
`tasks`	`Task[]`	`[]`	Array of task data
`useDefaultDrawer`	`boolean`	`true`	Whether to use built-in task edit drawer (TaskDrawer)
`taskBarConfig`	`TaskBarConfig`	`{}`	Task bar style configuration, see TaskBarConfig Configuration
`taskListConfig`	`TaskListConfig`	`undefined`	Task list configuration, see TaskListConfig Configuration
`autoSortByStartDate`	`boolean`	`false`	Whether to automatically sort tasks by start date

Configuration Notes:

Default mode: useDefaultDrawer=true (default), double-click task to auto-open built-in TaskDrawer
Custom editor: useDefaultDrawer=false disables built-in drawer, listen to @task-double-click event to open custom editor
Read-only mode: useDefaultDrawer=false and don't listen to @task-double-click event, user double-click task has no response

Task Events

💡 Event-Driven Architecture: Component adopts pure event-driven design. All user operations (add, edit, delete, drag, etc.) will trigger corresponding events for easy external listening and handling.

Event Name	Parameters	When Triggered	Description
`add-task`	-	When clicking toolbar "Add Task" button	Can be used for custom add task logic. If `useDefaultDrawer=true`, component will auto-open built-in TaskDrawer
`task-click`	`(task: Task, event: MouseEvent) => void`	When clicking task bar	Triggered on single-click task
`task-double-click`	`(task: Task) => void`	When double-clicking task bar	Double-click task always triggers. When `useDefaultDrawer=true`, component will additionally open built-in editor; when `false`, won't open. Event triggering is independent of property value
`task-added`	`{ task: Task }`	After task added	Triggered after adding task via built-in TaskDrawer. Note: Component has auto-updated `tasks` data, external only needs to listen to this event for additional processing (like calling API to save)
`task-updated`	`{ task: Task }`	After task updated	Triggered after updating task via built-in TaskDrawer or drag. Note: Component has auto-updated `tasks` data, external only needs to listen to this event for additional processing
`task-deleted`	`{ task: Task }`	After task deleted	Triggered after deleting task via built-in TaskDrawer. Note: Component has auto-updated `tasks` data, external only needs to listen to this event for additional processing
`taskbar-drag-end`	`(task: Task) => void`	When task bar drag ends	Task position changed, startDate and endDate updated. Note: Component has auto-updated `tasks` data
`taskbar-resize-end`	`(task: Task) => void`	When task bar resize ends	Task duration changed, endDate updated. Note: Component has auto-updated `tasks` data
`predecessor-added`	`{ targetTask: Task, newTask: Task }`	After adding predecessor via context menu	`targetTask` is the task to which predecessor is added, `newTask` is the newly created predecessor task
`successor-added`	`{ targetTask: Task, newTask: Task }`	After adding successor via context menu	`targetTask` is the original task, `newTask` is the newly created successor task (its predecessor already contains targetTask.id)
`timer-started`	`(task: Task) => void`	When task timer starts	Start recording task hours
`timer-stopped`	`(task: Task) => void`	When task timer stops	Stop recording task hours

Data Synchronization Notes:

✅ Component auto-updates internally: For all task CRUD operations, component will auto-update props.tasks data
✅ Events are for notification only: External event listeners are mainly for: showing messages, calling backend APIs, updating other related data, etc.
❌ Avoid duplicate operations: Don't modify tasks data again in event handlers, otherwise it will cause duplicate updates

Example 1: Basic Task Operations

<template>
  <div style="height: 600px;">
    <GanttChart
      :tasks="tasks"
      @add-task="handleAddTask"
      @task-added="handleTaskAdded"
      @task-updated="handleTaskUpdated"
      @task-deleted="handleTaskDeleted"
      @task-click="handleTaskClick"
      @taskbar-drag-end="handleTaskDragEnd"
    />
  </div>
</template>

<script setup lang="ts">
import { ref } from 'vue'
import { GanttChart } from 'jordium-gantt-vue3'
import type { Task } from 'jordium-gantt-vue3'
import 'jordium-gantt-vue3/dist/assets/jordium-gantt-vue3.css'

const tasks = ref<Task[]>([
  {
    id: 1,
    name: 'Project Planning',
    startDate: '2025-01-01',
    endDate: '2025-01-10',
    progress: 100,
    assignee: 'Alice',
    estimatedHours: 40,
  },
  {
    id: 2,
    name: 'Requirements Analysis',
    startDate: '2025-01-11',
    endDate: '2025-01-20',
    progress: 60,
    assignee: 'Bob',
    predecessor: [1], // Depends on task 1
  }
])

// Toolbar "Add Task" button click event
const handleAddTask = () => {
  console.log('Preparing to add task...')
  // Component will auto-open TaskDrawer (if useDefaultDrawer=true)
  // Can also execute custom logic here, like showing messages
}

// Task add event (added via built-in drawer)
const handleTaskAdded = (e: { task: Task }) => {
  console.log('Task added:', e.task)
  // Note: Component has auto-added task to tasks array
  // Only need to call backend API to save here
  // await api.createTask(e.task)
}

// Task update event (updated via built-in drawer or drag)
const handleTaskUpdated = (e: { task: Task }) => {
  console.log('Task updated:', e.task)
  // Note: Component has auto-updated task data in tasks array
  // Only need to call backend API to update here
  // await api.updateTask(e.task.id, e.task)
}

// Task delete event
const handleTaskDeleted = (e: { task: Task }) => {
  console.log('Task deleted:', e.task)
  // Note: Component has auto-removed task from tasks array
  // Only need to call backend API to delete here
  // await api.deleteTask(e.task.id)
}

// Task click event
const handleTaskClick = (task: Task) => {
  console.log('Clicked task:', task.name)
}

// Task drag end event
const handleTaskDragEnd = (task: Task) => {
  console.log('Task drag completed, new dates:', task.startDate, 'to', task.endDate)
  // Can call backend API here to save new dates
}
</script>

Example 2: Task Dependencies (Predecessors/Successors)

Tasks can configure predecessors via the predecessor field, and the component will automatically draw dependency lines:

<template>
  <GanttChart
    :tasks="tasks"
    @predecessor-added="handlePredecessorAdded"
    @successor-added="handleSuccessorAdded"
  />
</template>

<script setup lang="ts">
import { ref } from 'vue'
import { GanttChart } from 'jordium-gantt-vue3'
import type { Task } from 'jordium-gantt-vue3'
import 'jordium-gantt-vue3/dist/assets/jordium-gantt-vue3.css'

const tasks = ref<Task[]>([
  {
    id: 1,
    name: 'Requirements Analysis',
    startDate: '2025-01-01',
    endDate: '2025-01-10',
    progress: 100,
    predecessor: [] // No predecessors
  },
  {
    id: 2,
    name: 'System Design',
    startDate: '2025-01-11',
    endDate: '2025-01-20',
    progress: 80,
    predecessor: [1] // Depends on task 1 (Requirements Analysis)
  },
  {
    id: 3,
    name: 'Database Design',
    startDate: '2025-01-11',
    endDate: '2025-01-18',
    progress: 90,
    predecessor: [1] // Depends on task 1
  },
  {
    id: 4,
    name: 'Frontend Development',
    startDate: '2025-01-21',
    endDate: '2025-02-10',
    progress: 60,
    predecessor: [2] // Depends on task 2 (System Design)
  },
  {
    id: 5,
    name: 'Backend Development',
    startDate: '2025-01-19',
    endDate: '2025-02-08',
    progress: 70,
    predecessor: [2, 3] // Depends on both task 2 and 3
  },
  {
    id: 6,
    name: 'Integration Testing',
    startDate: '2025-02-11',
    endDate: '2025-02-20',
    progress: 30,
    predecessor: [4, 5] // Depends on frontend and backend development completion
  }
])

// Triggered when adding predecessor via context menu
const handlePredecessorAdded = (event: { targetTask: Task; newTask: Task }) => {
  console.log(`Task [${event.targetTask.name}] added predecessor [${event.newTask.name}]`)
  // Component will auto-update targetTask's predecessor array (append new task ID)
  // Can call backend API here to save dependency relationship
  // await api.addTaskDependency(event.targetTask.id, event.newTask.id)
}

// Triggered when adding successor via context menu
const handleSuccessorAdded = (event: { targetTask: Task; newTask: Task }) => {
  console.log(`Task [${event.targetTask.name}] added successor [${event.newTask.name}]`)
  // Component will auto-update newTask's predecessor array (add targetTask.id)
  // Can call backend API here to save dependency relationship
  // await api.addTaskDependency(event.newTask.id, event.targetTask.id)
}
</script>

Dependency Relationship Notes:

predecessor field supports multiple formats:
- Standard format (recommended): [1, 2, 3] - number array
- Compatible format 1: '1,2,3' - comma-separated string
- Compatible format 2: ['1', '2', '3'] - string array
- Component will automatically parse all formats
Predecessor task: Task that must be completed first (e.g., design must be done before development)
Successor task: Task that depends on current task (current task is a predecessor for other tasks)
Component will automatically draw dependency lines from predecessor tasks to dependent tasks
Can add/delete predecessor and successor tasks via built-in context menu
When deleting tasks via built-in menu, component will automatically clean up related dependency references
No predecessors: use empty array [], empty string '', or don't set predecessor field

Suitable for scenarios requiring complete custom control bar:

<template>
  <div>
    <!-- Custom control bar -->
    <div class="custom-toolbar">
      <button @click="triggerAddTask">Add Task</button>
      <button @click="triggerAddMilestone">Add Milestone</button>
      <!-- Other custom buttons... -->
    </div>

    <!-- Gantt chart component with hidden built-in toolbar -->
    <GanttChart
      :tasks="tasks"
      :milestones="milestones"
      :show-toolbar="false"
      :use-default-drawer="true"
      :use-default-milestone-dialog="true"
      @add-task="handleAddTask"
      @add-milestone="handleAddMilestone"
      @task-added="handleTaskAdded"
    />
  </div>
</template>

<script setup lang="ts">
import { ref } from 'vue'
import { GanttChart } from 'jordium-gantt-vue3'
import 'jordium-gantt-vue3/dist/assets/jordium-gantt-vue3.css'

const tasks = ref([])
const milestones = ref([])

// Custom button triggers event (component will respond and open built-in editor)
const triggerAddTask = () => {
  // Directly trigger component's add-task event
  // Since useDefaultDrawer=true, component will auto-open TaskDrawer
}

const triggerAddMilestone = () => {
  // Directly trigger component's add-milestone event
  // Since useDefaultMilestoneDialog=true, component will auto-open MilestoneDialog
}

// Listen to event handling logic
const handleAddTask = () => {
  console.log('Preparing to add task (triggered by custom button)')
}

const handleAddMilestone = () => {
  console.log('Preparing to add milestone (triggered by custom button)')
}

const handleTaskAdded = (e) => {
  console.log('Task added:', e.task)
  // Call API to save...
}
</script>

💡 Flexibility Design:

Show toolbar + default editor: Simplest out-of-the-box approach

Hide toolbar + custom buttons + default editor: Custom control bar style while keeping default edit functionality

Hide toolbar + custom buttons + custom editor: Fully customize all interaction logic

Milestone Management

Milestones are used to mark important time points in a project, such as project kickoff, phase completion, product release, etc. The component provides flexible milestone editing configuration, using the built-in MilestoneDialog by default, and also supports fully custom editing behavior.

Note

: Milestones and tasks are independent data collections with no direct association. Milestones are managed independently through the milestones prop.

Milestone Data Structure

Field	Type	Required	Default	Description
`id`	`number`	✅	-	Unique milestone identifier
`name`	`string`	✅	-	Milestone name
`startDate`	`string`	✅	-	Milestone date, format: 'YYYY-MM-DD' or 'YYYY-MM-DD HH:mm'
`endDate`	`string`	-	-	End date (usually not needed for milestones, auto-set to same as startDate)
`assignee`	`string`	-	-	Assignee
`type`	`string`	✅	`'milestone'`	Type identifier, must be set to 'milestone'
`icon`	`string`	-	`'diamond'`	Milestone icon, options: 'diamond', 'flag', 'star', 'rocket', etc.
`description`	`string`	-	-	Milestone description

Note

: The milestones prop type is Task[], ensure each milestone object's type field is set to 'milestone'.

Prop	Type	Default	Description
`milestones`	`Task[]`	`[]`	Array of milestone data (type is Task[], ensure type='milestone')
`useDefaultMilestoneDialog`	`boolean`	`true`	Whether to use built-in milestone edit dialog (MilestoneDialog)

Configuration Notes:

Default mode: useDefaultMilestoneDialog=true (default), double-click milestone to auto-open built-in MilestoneDialog
Disable editor: useDefaultMilestoneDialog=false, double-click milestone has no response (component doesn't open any editor)
Custom editor: Can listen to onMilestoneDoubleClick callback or related events to implement custom editing logic

💡 Differences Between Milestones and Tasks:

Milestone data is managed independently via milestones prop, separate from tasks

Milestone object's type field must be set to 'milestone'

Milestones don't support child tasks, dependency relationships, and other complex structures

Milestones are mainly used to mark key time points

Milestone Callbacks (Backward Compatible)

⚠️ Deprecated: Please use the new event-driven API (see "Milestone Events" section below)

Milestone Events

💡 Event-Driven Architecture: Milestone management adopts event-driven design. Using event API is recommended over callback functions.

Event Name	Parameters	When Triggered	Description
`add-milestone`	-	When clicking toolbar "Add Milestone" button	Can be used for custom add milestone logic. If `useDefaultMilestoneDialog=true`, component will auto-open built-in MilestoneDialog
`milestone-saved`	`(milestone: Task) => void`	After milestone saved (add or edit)	Triggered after saving milestone via built-in MilestoneDialog. Note: Component has auto-updated `milestones` data, external only needs to listen to this event for additional processing (like calling API to save)
`milestone-deleted`	`{ milestoneId: number }`	After milestone deleted	Triggered after deleting milestone via built-in MilestoneDialog. Note: Component has auto-updated `milestones` data, external only needs to listen to this event for additional processing
`milestone-icon-changed`	`{ milestoneId: number, icon: string }`	After milestone icon changed	Triggered after modifying icon via built-in MilestoneDialog
`milestone-drag-end`	`(milestone: Task) => void`	When milestone drag ends	Milestone date updated. Note: Component has auto-updated `milestones` data

Data Synchronization Notes:

✅ Component auto-updates internally: For all milestone CRUD operations, component will auto-update props.milestones data
✅ Events are for notification only: External event listeners are mainly for: showing messages, calling backend APIs, updating other related data, etc.
❌ Avoid duplicate operations: Don't modify milestones data again in event handlers, otherwise it will cause duplicate updates

Example 1: Using Event-Driven API (Recommended)

Using the new event API, component auto-manages data, more concise:

<template>
  <div style="height: 600px;">
    <GanttChart
      :milestones="milestones"
      @add-milestone="handleAddMilestone"
      @milestone-saved="handleMilestoneSaved"
      @milestone-deleted="handleMilestoneDeleted"
      @milestone-icon-changed="handleMilestoneIconChanged"
      @milestone-drag-end="handleMilestoneDrag"
    />
  </div>
</template>

<script setup lang="ts">
import { ref } from 'vue'
import { GanttChart } from 'jordium-gantt-vue3'
import type { Task } from 'jordium-gantt-vue3'
import 'jordium-gantt-vue3/dist/assets/jordium-gantt-vue3.css'

const milestones = ref<Task[]>([
  {
    id: 101,
    name: 'Project Kickoff',
    startDate: '2025-01-01',
    type: 'milestone',
    icon: 'diamond',
    assignee: 'Project Manager',
    description: 'Official project kickoff'
  },
  {
    id: 102,
    name: 'Requirements Review',
    startDate: '2025-01-15',
    type: 'milestone',
    icon: 'flag'
  }
])

// Toolbar "Add Milestone" button click event
const handleAddMilestone = () => {
  console.log('Preparing to add milestone...')
  // Component will auto-open MilestoneDialog (if useDefaultMilestoneDialog=true)
}

// Milestone save event (add or edit)
const handleMilestoneSaved = (milestone: Task) => {
  console.log('Milestone saved:', milestone)
  // Note: Component has auto-updated milestones array
  // Only need to call backend API to save here
  // await api.saveMilestone(milestone)
}

// Milestone delete event
const handleMilestoneDeleted = (e: { milestoneId: number }) => {
  console.log('Milestone deleted, ID:', e.milestoneId)
  // Note: Component has auto-removed from milestones array
  // Only need to call backend API to delete here
  // await api.deleteMilestone(e.milestoneId)
}

// Milestone icon change event
const handleMilestoneIconChanged = (e: { milestoneId: number; icon: string }) => {
  console.log('Milestone icon changed:', e.milestoneId, '->', e.icon)
  // Component has auto-updated icon, can call API to save here
  // await api.updateMilestoneIcon(e.milestoneId, e.icon)
}

// Milestone drag end event
const handleMilestoneDrag = (milestone: Task) => {
  console.log('Milestone drag completed, new date:', milestone.startDate)
  // Component has auto-updated date, can call API to save here
  // await api.updateMilestoneDate(milestone.id, milestone.startDate)
}
</script>

Example 2: Using Custom Milestone Edit Dialog

If you need to fully customize the milestone editing interface, you can disable the built-in dialog and use your own component:

<template>
  <div style="height: 600px;">
    <GanttChart
      :milestones="milestones"
      :use-default-milestone-dialog="false"
      @add-milestone="handleAddMilestone"
      @milestone-saved="handleMilestoneSaved"
      @milestone-deleted="handleMilestoneDeleted"
      @milestone-drag-end="handleMilestoneDrag"
    />

    <!-- Custom Milestone Edit Dialog -->
    <CustomMilestoneDialog
      v-model:visible="customDialogVisible"
      :milestone="editingMilestone"
      :is-new="isNewMilestone"
      @save="handleCustomDialogSave"
      @delete="handleCustomDialogDelete"
    />
  </div>
</template>

<script setup lang="ts">
import { ref } from 'vue'
import { GanttChart } from 'jordium-gantt-vue3'
import 'jordium-gantt-vue3/dist/assets/jordium-gantt-vue3.css'
import CustomMilestoneDialog from './CustomMilestoneDialog.vue'
import type { Task } from 'jordium-gantt-vue3'

const milestones = ref<Task[]>([
  {
    id: 101,
    name: 'Project Kickoff',
    startDate: '2025-01-01',
    type: 'milestone',
    icon: 'diamond',
    assignee: 'Project Manager',
    description: 'Official project kickoff'
  }
])

const customDialogVisible = ref(false)
const editingMilestone = ref<Task | null>(null)
const isNewMilestone = ref(false)

// Click toolbar "Add Milestone" button
const handleAddMilestone = () => {
  editingMilestone.value = null
  isNewMilestone.value = true
  customDialogVisible.value = true
}

// Open custom dialog when double-clicking milestone
// Note: Need to listen to Timeline component milestone double-click event
// or trigger edit via external button/list item
const openEditDialog = (milestone: Task) => {
  editingMilestone.value = { ...milestone }
  isNewMilestone.value = false
  customDialogVisible.value = true
}

// Custom dialog save event
const handleCustomDialogSave = (milestone: Task) => {
  if (isNewMilestone.value) {
    // Add milestone
    const newMilestone = {
      ...milestone,
      id: Date.now(), // Generate new ID
      type: 'milestone'
    }
    milestones.value.push(newMilestone)

    // Call backend API to save
    // await api.createMilestone(newMilestone)
  } else {
    // Update existing milestone
    const index = milestones.value.findIndex(m => m.id === milestone.id)
    if (index !== -1) {
      milestones.value[index] = { ...milestone }
    }

    // Call backend API to update
    // await api.updateMilestone(milestone)
  }

  customDialogVisible.value = false
}

// Custom dialog delete event
const handleCustomDialogDelete = (milestoneId: number) => {
  const index = milestones.value.findIndex(m => m.id === milestoneId)
  if (index !== -1) {
    milestones.value.splice(index, 1)
  }

  // Call backend API to delete
  // await api.deleteMilestone(milestoneId)

  customDialogVisible.value = false
}

// Following event handlers are still valid (for drag operations, etc.)
const handleMilestoneSaved = (milestone: Task) => {
  console.log('Milestone saved (via other method):', milestone)
}

const handleMilestoneDeleted = (e: { milestoneId: number }) => {
  console.log('Milestone deleted (via other method):', e.milestoneId)
}

const handleMilestoneDrag = (milestone: Task) => {
  console.log('Milestone drag completed:', milestone.startDate)
  // Call API to update date
  // await api.updateMilestoneDate(milestone.id, milestone.startDate)
}
</script>

Custom Dialog Component Example (CustomMilestoneDialog.vue - Using Element Plus)：

Note

: The following examplesUsing Element Plus UI framework. You can also use other UI frameworks (such as Ant Design Vue, Naive UI, etc.) or native HTML implementation.

<template>
  <el-dialog
    v-model="dialogVisible"
    :title="isNew ? 'Add milestone' : 'Edit Milestone'"
    width="500px"
    @close="handleClose"
  >
    <el-form :model="form" label-width="100px">
      <el-form-item label="Milestone Name">
        <el-input v-model="form.name" placeholder="Please enter milestone name" />
      </el-form-item>

      <el-form-item label="Date">
        <el-date-picker
          v-model="form.startDate"
          type="date"
          placeholder="Select date"
          value-format="YYYY-MM-DD"
        />
      </el-form-item>

      <el-form-item label="Assignee">
        <el-input v-model="form.assignee" placeholder="Please enter assignee" />
      </el-form-item>

      <el-form-item label="Icon">
        <el-select v-model="form.icon" placeholder="Select icon">
          <el-option label="Diamond" value="diamond" />
          <el-option label="Flag" value="flag" />
          <el-option label="Star" value="star" />
          <el-option label="Rocket" value="rocket" />
        </el-select>
      </el-form-item>

      <el-form-item label="Description">
        <el-input
          v-model="form.description"
          type="textarea"
          :rows="3"
          placeholder="Please enter description"
        />
      </el-form-item>
    </el-form>

    <template #footer>
      <div class="dialog-footer">
        <el-button v-if="!isNew" type="danger" @click="handleDelete">
          Delete
        </el-button>
        <el-button @click="handleClose">Cancel</el-button>
        <el-button type="primary" @click="handleSave">Save</el-button>
      </div>
    </template>
  </el-dialog>
</template>

<script setup lang="ts">
import { ref, watch } from 'vue'
import type { Task } from 'jordium-gantt-vue3'

interface Props {
  visible: boolean
  milestone: Task | null
  isNew: boolean
}

const props = defineProps<Props>()
const emit = defineEmits<{
  'update:visible': [value: boolean]
  save: [milestone: Task]
  delete: [milestoneId: number]
}>()

const dialogVisible = ref(false)
const form = ref({
  id: 0,
  name: '',
  startDate: '',
  assignee: '',
  icon: 'diamond',
  description: '',
  type: 'milestone'
})

watch(() => props.visible, (val) => {
  dialogVisible.value = val
  if (val) {
    if (props.milestone) {
      // Edit mode, fill data
      form.value = { ...props.milestone }
    } else {
      // Add mode, reset form
      form.value = {
        id: 0,
        name: '',
        startDate: new Date().toISOString().split('T')[0],
        assignee: '',
        icon: 'diamond',
        description: '',
        type: 'milestone'
      }
    }
  }
})

watch(dialogVisible, (val) => {
  emit('update:visible', val)
})

const handleClose = () => {
  dialogVisible.value = false
}

const handleSave = () => {
  if (!form.value.name || !form.value.startDate) {
    alert('Please fill required fields')
    return
  }
  emit('save', { ...form.value })
}

const handleDelete = () => {
  if (confirm('Are you sure to delete this milestone?')) {
    emit('delete', form.value.id)
  }
}
</script>

💡 Custom Dialog Notes:

Set use-default-milestone-dialog="false" to disable built-in dialog

Listen to @add-milestone event to open custom dialog

Need to manually manage milestones array CRUD operations

Can still listen to other events (like @milestone-drag-end) to handle drag operations

Suitable for scenarios requiring complex form validation, special UI design, or additional fields

⚙️ Configuration & Customization

This section details the configuration options and extension capabilities of the GanttChart component, including Component Configuration, Theme & Internationalization, and Custom Extensions.

Component Configuration

Customize the toolbar functional buttons and time scale options.

Type Definition:

Field	Type	Default	Description
`showAddTask`	`boolean`	`true`	Show "Add Task" button
`showAddMilestone`	`boolean`	`true`	Show "Add Milestone" button
`showTodayLocate`	`boolean`	`true`	Show "Locate to Today" button
`showExportCsv`	`boolean`	`true`	Show "Export CSV" button
`showExportPdf`	`boolean`	`true`	Show "Export PDF" button
`showLanguage`	`boolean`	`true`	Show "Language Switch" button (Chinese/English)
`showTheme`	`boolean`	`true`	Show "Theme Switch" button (Light/Dark)
`showFullscreen`	`boolean`	`true`	Show "Fullscreen" button
`showTimeScale`	`boolean`	`true`	Show time scale button group (controls entire group visibility)
`timeScaleDimensions`	`TimelineScale[]`	`['hour', 'day', 'week', 'month', 'quarter', 'year']`	Set time scale dimensions to display, options: `'hour'`, `'day'`, `'week'`, `'month'`, `'quarter'`, `'year'`
`defaultTimeScale`	`TimelineScale`	`'week'`	Default selected time scale
`showExpandCollapse`	`boolean`	`true`	Show "Expand All/Collapse All" button (for parent-child task tree structure)

TimelineScale Type Description:

type TimelineScale = 'hour' | 'day' | 'week' | 'month' | 'quarter' | 'year'

// Can also use constant form
import { TimelineScale } from 'jordium-gantt-vue3'

TimelineScale.HOUR    // 'hour' - Hour view
TimelineScale.DAY     // 'day' - Day view
TimelineScale.WEEK    // 'week' - Week view
TimelineScale.MONTH   // 'month' - Month view
TimelineScale.QUARTER // 'quarter' - Quarter view
TimelineScale.YEAR    // 'year' - Year view

Example 1: Complete Configuration (Show All Features)

<template>
  <GanttChart
    :tasks="tasks"
    :toolbar-config="toolbarConfig"
  />
</template>

<script setup lang="ts">
import { GanttChart } from 'jordium-gantt-vue3'
import 'jordium-gantt-vue3/dist/assets/jordium-gantt-vue3.css'
import type { ToolbarConfig } from 'jordium-gantt-vue3'

const toolbarConfig: ToolbarConfig = {
  showAddTask: true,               // Show add task button
  showAddMilestone: true,          // Show add milestone button
  showTodayLocate: true,           // Show locate to today button
  showExportCsv: true,             // Show export CSV button
  showExportPdf: true,             // Show export PDF button
  showLanguage: true,              // Show language switch button
  showTheme: true,                 // Show theme switch button
  showFullscreen: true,            // Show fullscreen button
  showTimeScale: true,             // Show time scale button group
  timeScaleDimensions: [           // Show all time scale dimensions
    'hour', 'day', 'week', 'month', 'quarter', 'year'
  ],
  defaultTimeScale: 'week',        // Default week view
  showExpandCollapse: true         // Show expand/collapse button
}
</script>

Example 2: Simplified Configuration (Show Common Features Only)

<script setup lang="ts">
import type { ToolbarConfig } from 'jordium-gantt-vue3'

const toolbarConfig: ToolbarConfig = {
  showAddTask: true,               // Keep add task
  showAddMilestone: true,          // Keep add milestone
  showTodayLocate: true,           // Keep locate today
  showExportCsv: false,            // Hide export CSV
  showExportPdf: false,            // Hide export PDF
  showLanguage: false,             // Hide language switch (fixed to one language)
  showTheme: true,                 // Keep theme switch
  showFullscreen: true,            // Keep fullscreen
  showTimeScale: true,             // Show time scale
  timeScaleDimensions: [           // Only show day/week/month scales
    'day', 'week', 'month'
  ],
  defaultTimeScale: 'week',        // Default week view
  showExpandCollapse: true         // Keep expand/collapse
}
</script>

Example 3: Using TimelineScale Constants

<script setup lang="ts">
import { TimelineScale } from 'jordium-gantt-vue3'
import type { ToolbarConfig } from 'jordium-gantt-vue3'

const toolbarConfig: ToolbarConfig = {
  showTimeScale: true,
  timeScaleDimensions: [
    TimelineScale.DAY,
    TimelineScale.WEEK,
    TimelineScale.MONTH,
    TimelineScale.QUARTER
  ],
  defaultTimeScale: TimelineScale.MONTH  // Default month view
}
</script>

Example 4: Minimal Configuration (Suitable for Embedded Use)

<script setup lang="ts">
import type { ToolbarConfig } from 'jordium-gantt-vue3'

const toolbarConfig: ToolbarConfig = {
  showAddTask: false,              // Hide all edit buttons
  showAddMilestone: false,
  showTodayLocate: true,           // Only keep navigation features
  showExportCsv: false,
  showExportPdf: false,
  showLanguage: false,
  showTheme: false,
  showFullscreen: false,
  showTimeScale: true,             // Keep time scale switch
  timeScaleDimensions: ['week', 'month'],
  defaultTimeScale: 'month',
  showExpandCollapse: false        // Hide expand/collapse
}
</script>

💡 Configuration Recommendations：

Default configuration：When not passed, all buttons are shown by default

Show as needed: Hide unnecessary feature buttons based on business requirements

Time scale：timeScaleDimensions controls which time dimensions to display, recommend selecting 2-4 common dimensions

Responsive layout：toolbar will automatically adapt to container width, excessive buttons will collapse into more menu

TaskListConfig（Task List Configuration）

Customize task list display columns, width limits, etc. Task list is located on the left side of the Gantt chart, showing detailed task information.

Type Definition：

Field	Type	Default	Description
`columns`	`TaskListColumnConfig[]`	Default 8 columns	Task list column configuration array, defines which columns to display and their properties
`showAllColumns`	`boolean`	`true`	Whether to show all columns. When `true`, ignores `visible` setting in `columns`
`defaultWidth`	`number \| string`	`320`	Default expanded width. Supports pixel number (like `320`) or percentage string (like `'30%'`)
`minWidth`	`number \| string`	`280`	Minimum width. Supports pixel number (like `280`) or percentage string (like `'20%'`). Cannot be less than 280px
`maxWidth`	`number \| string`	`1160`	Maximum width. Supports pixel number (like `1160`) or percentage string (like `'80%'`)

TaskListColumnConfig Type Definition：

Field	Type	Required	Description
`key`	`string`	✅	Unique column identifier, used to access fields in Task object and for internationalization
`label`	`string`	-	Column display label (header text)
`cssClass`	`string`	-	Custom CSS class name
`width`	`number`	-	Column width (unit: pixels)
`visible`	`boolean`	-	Whether to show this column, default `true`. This setting is invalid when `showAllColumns=true`

Example1：Basic Configuration (Adjust Width)

<template>
  <GanttChart
    :tasks="tasks"
    :task-list-config="taskListConfig"
  />
</template>

<script setup lang="ts">
import { GanttChart } from 'jordium-gantt-vue3'
import 'jordium-gantt-vue3/dist/assets/jordium-gantt-vue3.css'
import type { TaskListConfig } from 'jordium-gantt-vue3'

const taskListConfig: TaskListConfig = {
  defaultWidth: 450,      // Default width 450px (wider than default 320px)
  minWidth: 300,          // Minimum width 300px
  maxWidth: 1200,         // Maximum width 1200px
}
</script>

Example2：Using Percentage Width

<template>
  <GanttChart
    :tasks="tasks"
    :task-list-config="taskListConfig"
  />
</template>

<script setup lang="ts">
import { GanttChart } from 'jordium-gantt-vue3'
import 'jordium-gantt-vue3/dist/assets/jordium-gantt-vue3.css'
import type { TaskListConfig } from 'jordium-gantt-vue3'

const taskListConfig: TaskListConfig = {
  defaultWidth: '25%',    // Default 25% of container width
  minWidth: '15%',        // Minimum 15%
  maxWidth: '60%',        // Maximum 60%
}
</script>

Example3：Custom Display Columns (Standard Configuration)

Based on business requirements, you can customize columns to display, column widths, and display order. Recommend defining column configuration array first, then assign to columns prop.

<template>
  <GanttChart
    :tasks="tasks"
    :task-list-config="taskListConfig"
  />
</template>

<script setup lang="ts">
import { GanttChart } from 'jordium-gantt-vue3'
import 'jordium-gantt-vue3/dist/assets/jordium-gantt-vue3.css'
import type { TaskListConfig, TaskListColumnConfig } from 'jordium-gantt-vue3'

// Define column configuration to display
const columns: TaskListColumnConfig[] = [
  { key: 'predecessor', label: 'Predecessors', visible: true },
  { key: 'assignee', label: 'Assignee', visible: true },
  { key: 'startDate', label: 'Start Date', visible: true },
  { key: 'endDate', label: 'End Date', visible: true },
  { key: 'estimatedHours', label: 'Estimated Hours', visible: true },
  { key: 'actualHours', label: 'Actual Hours', visible: true },
  { key: 'progress', label: 'Progress', visible: true },
]

const taskListConfig: TaskListConfig = {
  columns,
  defaultWidth: 450,
  minWidth: 300,
  maxWidth: 1200,
}
</script>

Example4：Simplified Column Configuration

Only show core information columns, suitable for scenarios with limited space or requiring concise display.

<script setup lang="ts">
import type { TaskListConfig, TaskListColumnConfig } from 'jordium-gantt-vue3'

// Define simplified Column Configuration
const columns: TaskListColumnConfig[] = [
  { key: 'name', label: 'Task', visible: true },
  { key: 'assignee', label: 'Assignee', width: 80, visible: true },
  { key: 'progress', label: 'Progress', width: 60, visible: true },
]

const taskListConfig: TaskListConfig = {
  columns,
  defaultWidth: 350,
  minWidth: 280,
  maxWidth: 500,
  showAllColumns: false,  // Only show columns with visible=true
}
</script>

Example5：Custom Business Columns

Add business-related custom columns, ensure Task object contains corresponding fields.

<script setup lang="ts">
import type { TaskListConfig, TaskListColumnConfig } from 'jordium-gantt-vue3'

// Define configuration with custom columns
const columns: TaskListColumnConfig[] = [
  { key: 'name', label: 'Task Name', visible: true },
  { key: 'priority', label: 'Priority', width: 80, visible: true },      // Custom column
  { key: 'department', label: 'Department', width: 100, visible: true },     // Custom column
  { key: 'status', label: 'Status', width: 80, visible: true },          // Custom column
  { key: 'assignee', label: 'Assignee', visible: true },
  { key: 'startDate', label: 'Start Date', visible: true },
  { key: 'endDate', label: 'End Date', visible: true },
  { key: 'progress', label: 'Progress', visible: true },
]

const taskListConfig: TaskListConfig = {
  columns,
}
</script>

Example6：Dynamic Column Configuration

Combine ref and computed to achieve dynamic show/hide and width adjustment of columns.

<template>
  <GanttChart
    :tasks="tasks"
    :task-list-config="taskListConfig"
  />
</template>

<script setup lang="ts">
import { ref, computed } from 'vue'
import { GanttChart } from 'jordium-gantt-vue3'
import 'jordium-gantt-vue3/dist/assets/jordium-gantt-vue3.css'
import type { TaskListConfig, TaskListColumnConfig } from 'jordium-gantt-vue3'

// Define dynamically configurable columns
const availableColumns = ref<TaskListColumnConfig[]>([
  { key: 'predecessor', label: 'Predecessors', visible: true },
  { key: 'assignee', label: 'Assignee', visible: true },
  { key: 'startDate', label: 'Start Date', visible: true },
  { key: 'endDate', label: 'End Date', visible: true },
  { key: 'estimatedHours', label: 'Estimated Hours', visible: true },
  { key: 'actualHours', label: 'Actual Hours', visible: true },
  { key: 'progress', label: 'Progress', visible: true },
  { key: 'custom', label: 'Custom column', visible: true, width: 120 },
])

// Define width configuration
const taskListWidth = ref({
  defaultWidth: 450,
  minWidth: 300,
  maxWidth: 1200,
})

// Use computed property to dynamically generate configuration
const taskListConfig = computed<TaskListConfig>(() => ({
  columns: availableColumns.value,
  defaultWidth: taskListWidth.value.defaultWidth,
  minWidth: taskListWidth.value.minWidth,
  maxWidth: taskListWidth.value.maxWidth,
}))
</script>

💡 Configuration Notes：

Default behavior：When not passed, show all 8 default columns with width of 320px

Width units：Supports pixel (number) and percentage (string, like '30%') methods

Percentage calculation：Based on total width of Gantt chart container, responsive adjustment

Column order: columns array order determines column display order

Column configuration standards：Recommend defining TaskListColumnConfig[] type column array first, then assign to columns prop

Custom column support：Task interface supports arbitrary custom fields through [key: string]: unknown index signature, component will dynamically read column values through task[column.key], no need to modify Task interface to add custom columns

Dynamic configuration：Combine ref and computed to achieve dynamic show/hide and width adjustment of columns

Minimum width limit: minWidth cannot be less than 280px, this is the minimum value to ensure basic usability

TaskBarConfig (Task Bar Configuration)

Controls task bar display content and interaction behavior。

Configuration Fields：

Field	Type	Default	Description
`showAvatar`	`boolean`	`true`	Whether to show avatar
`showTitle`	`boolean`	`true`	Whether to show title text
`showProgress`	`boolean`	`true`	Whether to show progress text
`dragThreshold`	`number`	`5`	Drag trigger threshold (pixels)
`resizeHandleWidth`	`number`	`5`	Resize handle width (pixels), max 15px
`enableDragDelay`	`boolean`	`false`	Whether to enable drag delay (prevent accidental trigger)
`dragDelayTime`	`number`	`150`	Drag delay time (milliseconds)

💡 Edit Permission Control：

Global control: Use <GanttChart :allow-drag-and-resize="false" /> to disable drag/resize for all tasks

Individual task control: Set task object isEditable: false property to control individual task

Example1：Complete Configuration

<template>
  <GanttChart
    :tasks="tasks"
    :task-bar-config="taskBarConfig"
  />
</template>

<script setup lang="ts">
import { GanttChart } from 'jordium-gantt-vue3'
import 'jordium-gantt-vue3/dist/assets/jordium-gantt-vue3.css'
import type { TaskBarConfig } from 'jordium-gantt-vue3'

const taskBarConfig: TaskBarConfig = {
  showAvatar: true,
  showTitle: true,
  showProgress: true,
  dragThreshold: 8,
  resizeHandleWidth: 8,
  enableDragDelay: true,
  dragDelayTime: 200,
}
</script>

Example2：Global Read-Only Mode

Disable edit operations for all tasks.

<template>
  <GanttChart
    :tasks="tasks"
    :allow-drag-and-resize="false"
  />
</template>

Example3：Individual Task Read-Only

Only certain tasks are non-editable, other tasks are normal.

<script setup lang="ts">
import type { Task } from 'jordium-gantt-vue3'

const tasks: Task[] = [
  {
    id: 1,
    name: 'Editable Task',
    startDate: '2025-01-01',
    endDate: '2025-01-10',
    // isEditable default is true
  },
  {
    id: 2,
    name: 'Read-Only Task (Locked)',
    startDate: '2025-01-05',
    endDate: '2025-01-15',
    isEditable: false, // This task cannot be dragged/resized
  },
]
</script>

Example4：Simplified Display

Only show task bar, hide avatar, title and progress text.

<script setup lang="ts">
import type { TaskBarConfig } from 'jordium-gantt-vue3'

const taskBarConfig: TaskBarConfig = {
  showAvatar: false,
  showTitle: false,
  showProgress: false,
}
</script>

Example5：Anti-Accidental Touch Configuration

In mobile or touch screen scenarios, increase drag threshold and delay time.

<script setup lang="ts">
import { computed, ref } from 'vue'
import type { TaskBarConfig } from 'jordium-gantt-vue3'

const isTouchDevice = ref('ontouchstart' in window)

const taskBarConfig = computed<TaskBarConfig>(() => ({
  dragThreshold: isTouchDevice.value ? 10 : 5,
  resizeHandleWidth: isTouchDevice.value ? 12 : 5,
  enableDragDelay: isTouchDevice.value,
  dragDelayTime: isTouchDevice.value ? 300 : 150,
}))
</script>

Timeline Container Auto-Fill Configuration

The component has built-in intelligent timeline range calculation logic, ensuring that regardless of task data volume or task duration, the timeline always fills the container width, providing the best visual experience.

Core Design Principles:

Base Buffer Mechanism: Add fixed buffers based on the actual time range of tasks, varying by view type
- Hour view：±1 day task range
- Day view: ±30 days before/after task range
- Week view: ±8 weeks (approx. 2 months) before/after task range
- Month view: ±1 year before/after task range
- Quarter view: ±1 year before/after task range
- Year view: ±1 year before/after task range
Container Width Adaptation: After base buffering, if calculated timeline width is less than container width, automatically extend the range
- Calculate time units (days/weeks/months/quarters/years) needed for container
- Symmetrically extend on both sides of base range to ensure timeline fills container
Empty Data Handling: When no task data exists, calculate reasonable time range based on container width and time scale
- Center on current date
- Dynamically calculate time span to display based on container width
- Ensure minimum display range (e.g., at least 60 days for day view, at least 20 weeks for week view)
Independent Calculation on View Switch: Each time scale switch triggers independent recalculation of optimal time range for that view
- Avoid unreasonable ranges caused by different views sharing cache
- Each view gets optimal display effect

Calculation Pattern Reference Table:

View	Unit Width	Base Buffer	Empty Data Min Range	Container Auto-Fill?
Hour View	30px/hour	±1 day	3 days	✅
Day View	30px/day	±30 days	60 days	✅
Week View	60px/week	±2 months	20 weeks	✅
Month View	60px/month	±1 year	3 years	✅
Quarter View	60px/quarter (240px/year)	±1 year	5 years	✅
Year View	360px/year	±1 year	5 years	✅

Practical Application Scenarios:

Short-term Tasks (e.g., 1-week project):
- Won't result in narrow timeline, automatically extends to fill container
- Day view: 1 week (7 days × 30px = 210px) → Extends to ≥1200px (approx. 40 days)
- Week view: 1 week (60px) → Extends to ≥1200px (approx. 20 weeks)
Long-term Projects (e.g., 2-year project):
- After adding fixed buffer, automatically adapts to container
- Month view: 24 months + buffer → Extends to container width if needed
- Quarter view: 8 quarters + buffer → Extends to container width if needed
Empty Board (no task data):
- Day view: Centered on today, displays at least 60 days
- Week view: Centered on today, displays at least 20 weeks
- Month view: Displays at least 3 years
- Quarter/Year view: Displays at least 5 years

💡 Automation Advantages:

No need to manually set startDate and endDate, component automatically calculates optimal range

Responsive to container width changes, timeline automatically recalculates

Different views independently optimized, auto-adjusts to best display effect when switching views

Avoids issues with timeline being too narrow or having excessive whitespace

Suitable for displaying at different resolutions

Theme & Internationalization

Theme Switching

Component has built-in light and dark themes, can switch via toolbar button, also can listen to switch events:

<template>
  <GanttChart
    :tasks="tasks"
    :on-theme-change="handleThemeChange"
  />
</template>

<script setup lang="ts">
const handleThemeChange = (isDark: boolean) => {
  console.log('Theme switched to:', isDark ? 'dark' : 'light')
  // Can save user preference settings to localStorage here
  localStorage.setItem('gantt-theme', isDark ? 'dark' : 'light')
}
</script>

Custom Theme Variables

Customize theme by overriding CSS variables:

/* Customize light theme */
:root {
  /* Primary colors */
  --gantt-primary-color: #409eff;
  --gantt-success-color: #67c23a;
  --gantt-warning-color: #e6a23c;
  --gantt-danger-color: #f56c6c;

  /* Background colors */
  --gantt-bg-primary: #ffffff;
  --gantt-bg-secondary: #f5f7fa;
  --gantt-bg-hover: #ecf5ff;

  /* Text colors */
  --gantt-text-primary: #303133;
  --gantt-text-secondary: #606266;
  --gantt-text-placeholder: #c0c4cc;

  /* Border colors */
  --gantt-border-color: #dcdfe6;
  --gantt-border-color-light: #e4e7ed;

  /* Task bar colors */
  --gantt-task-bg: #409eff;
  --gantt-task-border: #66b1ff;
  --gantt-task-text: #ffffff;
}

/* Customize dark theme */
.dark {
  --gantt-bg-primary: #1a1a1a;
  --gantt-bg-secondary: #2c2c2c;
  --gantt-bg-hover: #3a3a3a;

  --gantt-text-primary: #e5e5e5;
  --gantt-text-secondary: #b0b0b0;

  --gantt-border-color: #3a3a3a;
  --gantt-border-color-light: #4a4a4a;

  --gantt-task-bg: #409eff;
  --gantt-task-border: #66b1ff;
  --gantt-task-text: #ffffff;
}

Language Switching

Component has built-in Chinese (zh-CN) and English (en-US), can switch via toolbar button:

<template>
  <GanttChart
    :tasks="tasks"
    :on-language-change="handleLanguageChange"
  />
</template>

<script setup lang="ts">
const handleLanguageChange = (lang: 'zh-CN' | 'en-US') => {
  console.log('Language switched to:', lang)
  // Can save user preference settings to localStorage here
  localStorage.setItem('gantt-language', lang)
}
</script>

Custom Translations

Override or extend default translations via localeMessages prop:

<template>
  <GanttChart
    :tasks="tasks"
    :locale-messages="customMessages"
  />
</template>

<script setup lang="ts">
const customMessages = {
  // Task list related
  name: 'Task Name (Custom)',
  startDate: 'Start Date',
  endDate: 'End Date',
  duration: 'Duration',
  progress: 'Completion',
  predecessor: 'Predecessors',
  assignee: 'Assignee',
  estimatedHours: 'Estimated Hours',
  actualHours: 'Actual Hours'

  // Toolbar related
  addTask: 'New Task',
  addMilestone: 'New Milestone',
  today: 'Today',
  exportCsv: 'Export CSV',
  exportPdf: 'Export PDF',
  fullscreen: 'Fullscreen',
  exitFullscreen: 'Exit Fullscreen',
  language: 'Language',
  theme: 'Theme',
  expandAll: 'Expand All',
  collapseAll: 'Collapse All'

  // Internal Task editor related
  title: 'Task Details',
  titleEdit: 'Edit Task',
  titleNew: 'New Task',
  name: 'Task Name',
  startDate: 'Start Date',
  endDate: 'End Date',
  assignee: 'Assignee',
  predecessor: 'Predecessors',
  description: 'Description',
  estimatedHours: 'Estimated Hours',
  actualHours: 'Actual Hours',
  progress: 'Progress',
  save: 'Save',
  cancel: 'Cancel',
  delete: 'Delete'

  // Other texts
  days: 'days',
  hours: 'hours',
  overtime: 'overtime',
  overdue: 'overdue',
  // ... More custom translations
}
</script>

💡 Tip：

localeMessages adopts deep merge strategy, only need to pass fields that need to be overridden

supports nested objects, like taskList.name, toolbar.addTask, etc.

For complete translation keys, please refer to built-in messages['zh-CN'] object in component

Custom Extensions

Slots (Slots)

Component provides slots support, allowing custom task content rendering。

`custom-task-content` Slots

Used to customize task display content in task list (TaskRow) and timeline (TaskBar).

Slot Parameters：

Parameter	Type	Source	Description
`type`	`'task-row'` \| `'task-bar'`	Common	Slot call position identifier
`task`	`Task`	Common	Current task object

TaskRow specific parameters (when type === 'task-row'):

Parameter	Type	Description
`isRowContent`	`boolean`	Identified as row content
`level`	`number`	Task level
`indent`	`string`	Indent style
`isHovered`	`boolean`	Whether hovering
`hoveredTaskId`	`number \| null`	Current hovering task ID
`isParent`	`boolean`	Whether parent task
`hasChildren`	`boolean`	Whether has child tasks
`collapsed`	`boolean`	Whether collapsed
`formattedTimer`	`string`	Formatted timer text
`timerRunning`	`boolean`	Whether timer is running
`timerElapsed`	`number`	Elapsed time
`isOvertime`	`number \| boolean \| undefined`	Whether overtime
`overdueDays`	`number`	Overdue days
`overtimeText`	`string`	Overtime text
`overdueText`	`string`	Overdue text
`daysText`	`string`	Days text
`progressClass`	`string`	Progress CSS class name

TaskBar specific parameters (when type === 'task-bar'):

Parameter	Type	Description
`status`	`object`	TaskStatus object, contains `type`, `color`, `bgColor`, `borderColor`
`statusType`	`string`	StatusType：`'completed'`, `'delayed'`, `'in-progress'`, `'not-started'`, `'parent'`
`isParent`	`boolean`	Whether parent task
`progress`	`number`	TaskProgress（0-100）
`currentTimeScale`	`TimelineScale`	Current time scale
`rowHeight`	`number`	Row height (pixels)
`dayWidth`	`number`	Width per day (pixels)

Usage Example：

<template>
  <GanttChart :tasks="tasks">
    <template #custom-task-content="slotProps">
      <!-- Render different content based on type -->
      <CustomTaskContent
        :task="slotProps.task"
        :type="slotProps.type"
        :status="slotProps.status"
      />
    </template>
  </GanttChart>
</template>

<script setup lang="ts">
import { ref } from 'vue'
import { GanttChart } from 'jordium-gantt-vue3'
import 'jordium-gantt-vue3/dist/assets/jordium-gantt-vue3.css'
import type { Task } from 'jordium-gantt-vue3'
import CustomTaskContent from './CustomTaskContent.vue'

const tasks = ref<Task[]>([
  {
    id: 1,
    name: '<strong>Important Task</strong>',
    startDate: '2025-01-01',
    endDate: '2025-01-10',
    progress: 50
  }
])
</script>

Custom Content Component Example：

<!-- CustomTaskContent.vue -->
<script setup lang="ts">
import type { Task } from 'jordium-gantt-vue3'

interface Props {
  task: Task
  type: 'task-row' | 'task-bar'
  status?: {
    type: string
    color: string
    bgColor: string
    borderColor: string
  }
}

const props = defineProps<Props>()
</script>

<template>
  <div class="custom-task-content">
    <!-- Rendering in TaskRow -->
    <div v-if="type === 'task-row'" class="task-row-content">
      <span v-html="task.name" />
    </div>

    <!-- Rendering in TaskBar -->
    <div v-else-if="type === 'task-bar'" class="task-bar-content">
      <div class="task-icon" :style="{ color: status?.color }">📌</div>
      <span class="task-title" v-html="task.name" />
    </div>
  </div>
</template>

<style scoped>
.custom-task-content {
  width: 100%;
  height: 100%;
}

.task-row-content {
  padding: 0 4px;
  overflow: hidden;
  text-overflow: ellipsis;
  white-space: nowrap;
}

.task-bar-content {
  display: flex;
  align-items: center;
  gap: 4px;
  padding: 0 8px;
  overflow: hidden;
}

.task-icon {
  flex-shrink: 0;
  font-size: 14px;
}

.task-title {
  flex: 1;
  overflow: hidden;
  text-overflow: ellipsis;
  white-space: nowrap;
}
</style>

💡 Usage Scenarios：

Support HTML formatted task names

Add custom icons, tags or badges

Display different styles based on task status

Integrate third-party rich text rendering

Display additional business information

⚠️ Notes：

Slot content will be rendered in both TaskRow and TaskBar

Need to distinguish rendering position based on type parameter

TaskRow and TaskBar have different available space, need to adapt layout

Avoid using overly complex components in slot content, may affect performance

❓ FAQ

How to integrate into existing project?

Install dependencies
Import component and styles
Pass in data
Listen to events and handle business logic

See Contributing Guide for details.

Which browsers are supported?

Chrome >= 90
Firefox >= 88
Safari >= 14
Edge >= 90

📁 Project Structure

jordium-gantt-vue3/
├── src/                      # Source code
│   ├── components/           # Vue Components
│   │   ├── GanttChart.vue    # Main Gantt chart component
│   │   ├── TaskList.vue      # Task list
│   │   ├── Timeline.vue      # Timeline
│   │   └── ...
│   ├── models/               # Data models
│   │   ├── classes/          # Class definitions
│   │   ├── configs/          # Configuration interfaces
│   │   └── types/            # Type Definition
│   ├── composables/          # Composables
│   ├── styles/               # Style files
│   └── utils/                # Utilities
├── demo/                     # Demo code
├── docs/                     # Documentation
├── public/                   # Public assets
└── package.json              # Project configuration

Live Demo: https://nelson820125.github.io/jordium-gantt-vue3/
GitHub: https://github.com/nelson820125/jordium-gantt-vue3
npm: https://www.npmjs.com/package/jordium-gantt-vue3
Changelog: CHANGELOG.md
Contributing Guide: CONTRIBUTING.md

🤝 Contributing

Welcome to submit Issues and Pull Requests!

For detailed contributing guide, please see CONTRIBUTING.md。

Contributors

Thanks to all developers who contributed to this project！

View the complete Contributors list。

📄 Open Source License

_{If this project helps you, please give it a ⭐️ to support it!}

70 KiB Raw Blame History Unescape Escape

jordium-gantt-vue3

✨ Introduction

Core Features

Preview

Light Theme

Dark Theme

📦 Installation

🚀 Quick Start

Import Component

First Example

🌞 NPM Package Usage Example

📖 Component Guide

GanttChart Component

Basic Props

Configuration Object Props

Callback Props

Component Events

Example 1: Simplest Gantt Chart

Example 2: Gantt Chart with Milestones

Example 3: Hide Toolbar, Custom Control Buttons with Event Binding

Task Management

Task Data Structure

Task-Related Props

Task Events

Example 1: Basic Task Operations

Example 2: Task Dependencies (Predecessors/Successors)

Example 3: Hide Toolbar, Use Custom Buttons to Trigger Events

Milestone Management

Milestone Management

Milestone Data Structure

Milestone-Related Props

Milestone Callbacks (Backward Compatible)

Milestone Events

Example 1: Using Event-Driven API (Recommended)

Example 2: Using Custom Milestone Edit Dialog

⚙️ Configuration & Customization

Component Configuration

ToolbarConfig (Toolbar Configuration)

TaskListConfig（Task List Configuration）

TaskBarConfig (Task Bar Configuration)

Timeline Container Auto-Fill Configuration

Theme & Internationalization

Theme Switching

Custom Theme Variables

Language Switching

Custom Translations

Custom Extensions

Slots (Slots)

custom-task-content Slots

❓ FAQ

How to integrate into existing project?

Which browsers are supported?

📁 Project Structure

🔗 Related Links

🤝 Contributing

Contributors

📄 Open Source License

70 KiB

Raw Blame History

`custom-task-content` Slots
